Sintech SFF-8639 NVMe SSD PCIe Adapter with bracket, support NVMe standard PCIE 2.5" SSD, or 2.5" SATA hard drive to a desktop, workstation or server via PCIe x4 slot.
This adapter supports all NVMe standard 2.5" SSD, such as Intel DC P3500/P3600/P3700, Samsung XS1715, OCZ Z-drive 6000, HGST Ultrastar SN100 etc.
Product Specification:
4 layers PCB board
Support 2.5" NVMe PCIE SSD (SFF-8639 interface) into PCIE x4 lane slot for Server, workstation, desktop.
Support 2.5" SATA HDD with SATA cable and power cord.
Support PCIE Gen3, PCIE Gen2, PCIE Gen1, suggest to use PCIE Gen3 slot for high performance.
15cms high speed foilded cable extending to 3.5" SATA bracket
When install OS with NVMe SSD, please make sure Motherboard BIOS can be support PCIE SSD to boot up.
For Windows Server 2012 R2 or the latest OS have included NVMe SSD driver. When use the old OS that you must install the driver that provide from the SSD vendor.
Pls buy our 2.5 SATA HDD to 3.5 SATA HDD bracket if you want to mount U2 SSD in 3.5"HDD bay:http://eshop.sintech.cn/25-ssd-hdd-to-35-aluminium-mounting-bracket-p-1161.html

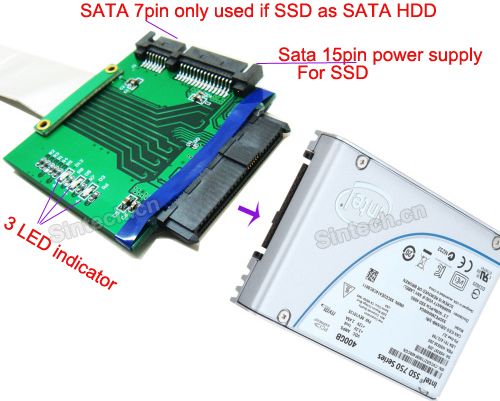

Notice:Pls connect SATA power cable because PCIe can't provide enough power for SSD. SATA 7pin only can be used if U2 SSD is used as SATA HDD.
